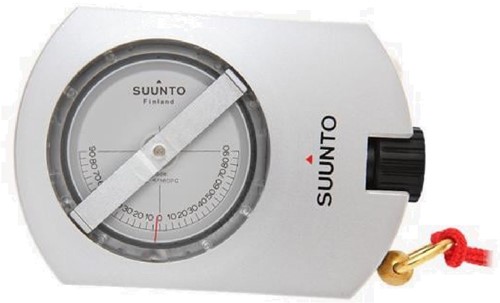

The Suunto PM-5 hand-held clinometers are used all over the world by foresters, surveyors, engineers, cartographers, geologists, miners and architects and many others to measure heights, vertical angles and slopes quickly, reliably and easily.
- Scales for slope in degrees and %
- Accurate measurement of heights and slopes
- Optical reading of card for higher accuracy
Specifications
- NSN: 6675-17-054-1961, 6675-21-905-6892, 6675-58-001-5956
- Comes with: Suunto PM-5/360 PC Clinometer, lanyard, nylon pouch, Quick guide
- Glass material: Acrylic
- Weight: 94 g / 3,32 oz
- Conversion table: Cosine 0-45° / Cotangent 0-45°
- Operating temperature: -30° C to +60° C / -22° F to +140° F
- Storage temperature: -30° C to +60° C / -22° F to +140° F
- Adjustable optics
- Accuracy: 1/4°
- Graduation interval: 0.5°
- Clinometer scales: 0 ± 90°, 0 ± 150%
- Adjustable diopter
- Dual saphire bearing
- Liquid filled capsule for stable operation
- Anodized light-alloy housing
- Nylon pouch with belt-loop
- Lanyard
- 2-year warranty
- Made in Finland
|
|
|
|
|
|
|
